T32Pro

4K@30fps, supporting multi-camera stitching / fisheye correction / ElS stabilization

Equipped with new-generation Tiziano V4.2 ISP for further improved imaging performance

Adopts Hera-V1.7 video encoder with superior encoding efficiency and dynamic scene processing capability

1TOPS@INT8 computing power greatly boosts algorithm utilization with abundant operator libraries and algorithms

Sub-100ms Fast Boot; pin-to-pin compatible with T32/T33 series; ultra-low power consumption under Atlas (AOV) mode

Sample Application

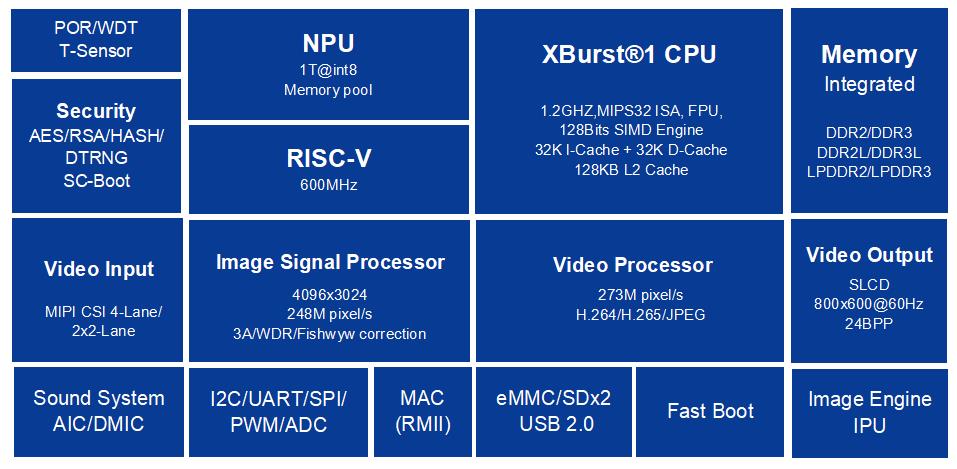

Chip Block Diagram

ISP

Tiziano V4.2 New-Generation ISP

Supports 4K@30fps processing and 2M@120fps high frame rate, supports multi-camera stitching / fisheye correction / EIS stabilization for further improved imaging effect

Hera

Hera-V1.7 Video Encoder

Higher data processing capacity, perfectly carries 4K UHD video streams with superior encoding efficiency and dynamic image performance

1T@int8 Computing Power

Maximized algorithm utilization rate with a rich set of operators and algorithms

AOV

Sub-100ms Fast Boot

Ultra-low power consumption with AOV-U, compatible with high-end 4K AOV

Chip Specifications

CPU

XBurst1 1.2GHz CPU

128bit SIMD Instruction Set

128KB L2 Cache

MCU

600MHz RISC-V Co-processor

RV32IM Instruction Set

AI Engine

1Tops@int8 computingPower

Supports low-bit and mixed quantization of int16/int12/int8/int4

Supports hardware acceleration for preprocessing and post-processing

Supports Magik algorithm development platform

Comes with standard common algorithms such as human, vehicle and pet detection, MERT

Video Encoder

H.264 / H.265 / JPEG Encoding

Data processing capacity of 273M Pixel/s, maximum supported resolution 4096x3024

Supports 4K@30fps, 2M@120fps

Supports CBR/VBR/CVBR/AVBR Control, with ROI function

Supports multi-reference frame encoding

Maximum resolution of 32Kx32K for JPEG

Image Signal Processor

Maximum supported resolution 4096*3024, data processing capacity of 248M Pixel/s

Built-in 3A and supports third-party 3A interface

Supports RAW domain denoising

Supports defective pixel correction, black level correction, lens shading correction, RGB gamma, purple fringing correction, dehaze and other functions

Supports demosaicing

Supports local contrast enhancement, local tone mapping

Supports multi-level noise reduction (spatial, temporal noise reduction) and sharpening

Supports 2-f HDR, distortion correction, fisheye correction

Supports scaling, cropping, flip mirror and rotation functions

Video Input Interface

Supports 4-lane MIPI-CSI@2Gbps

Supports 2-lane+2-lane mode

Video Output Interface

Supports Smart LCD interface

Supports RGB888/565/555 and NV12/21 input formats

Max performance up to 800x600@60Hz, 24BPP
