T33

5MP at 30fps, supporting 2880*1620 resolution with native multi-camera capabilityTiziano

V4.1 ISP: Starlight night vision image quality comprehensively upgraded

Hera-V1.6 video encoding: lower bit rate, delivering smoother dynamic effects

0.5TOPS@INT8 computing power: optimized performance and bandwidth, further improved utilization rate, rich operators and algorithms, with support for Mert audio algorithm

100ms-level fast boot-up, Atlas (AOV) cost-effective upgrade

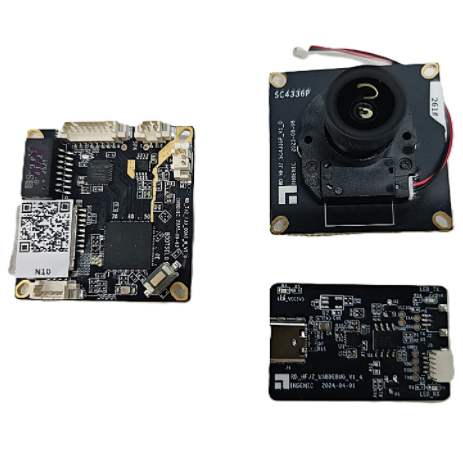

Sample Application

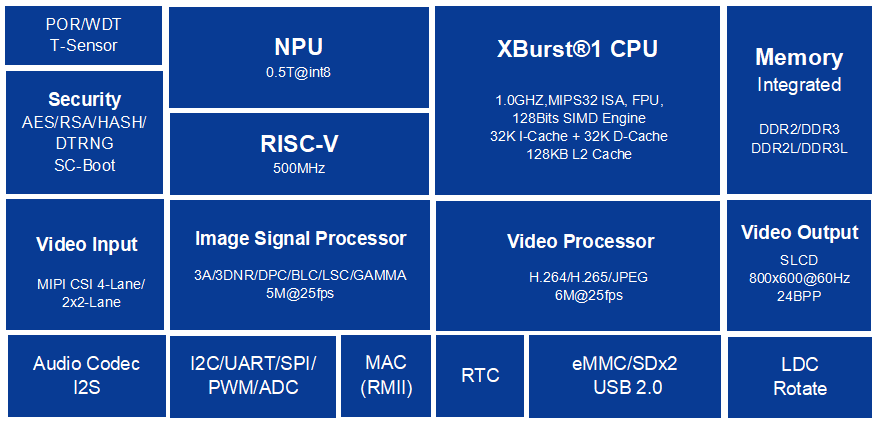

Chip Block Diagram

ISP

5MP at 30fps

Supports 2880×1620 resolution with native multi-camera capability; Tiziano V4.1 ISP comprehensively enhances starlight night vision image quality.

Hera

Hera-V1.6 video encoding

Lower bit rate, delivering smoother dynamic effects.

0.5TOPS@INT8 computing power

Optimized performance and bandwidth, further improved utilization rate, rich operators and algorithms, with support for Mert audio algorithm.

AOV

Typical scenario power consumption (4MP@1fps) < 40mW;

Atlas (AOV) cost-effective upgrade.

Chip Specifications

CPU

XBurst1 1GHz CPU

128-bit SIMD instruction set

128KB L2 cache

MCU

500MHz RISC-V coprocessor

RV32IM instruction set

AI Engine

0.5TOPS@INT8 hardware computing power

Supports INT16/INT8/INT4/INT2 bit widths

Supports hardware acceleration for pre-processing and post-processing

Magik2.0 one-stop algorithm development platform

Comes standard with commonly used algorithms such as human-vehicle-pet detection and Mert

Video Encoder

H.264 / H.265 / JPEG encoder

Maximum performance: 2880x1620@30fps, 3200x1800@25fps

Supports CBR/VBR/SVBR control and ROI function

Supports multi-reference frame encoding

JPEG maximum resolution support: 16K×16K

Image Signal Processor

Supports 2880×1620 and 2592×1944 resolutions

Supports built-in 3A and third-party 3A interfaces

Supports RAW domain denoising

Supports defective pixel correction, black level correction, lens shading correction, RGB gamma correction, purple fringing correction, dehazing, etc.

Supports demosaicing

Supports local contrast enhancement and local tone mapping

Supports multi-stage noise reduction (spatial and temporal noise reduction) and sharpening

Supports distortion correction

Supports scaling, cropping, flipping, mirroring and rotation functions

Video Input Interface

Supports 4-lane MIPI-CSI@1.5Gbps

Supports 2-lane+2-lane mode

Video Output Interface

Supports Smart LCD interface

Supports RGB888/565/555 and NV12/21 input formats

Maximum performance support: 800x600@60Hz, 24BPP
